What is the working principle of the winding machine?

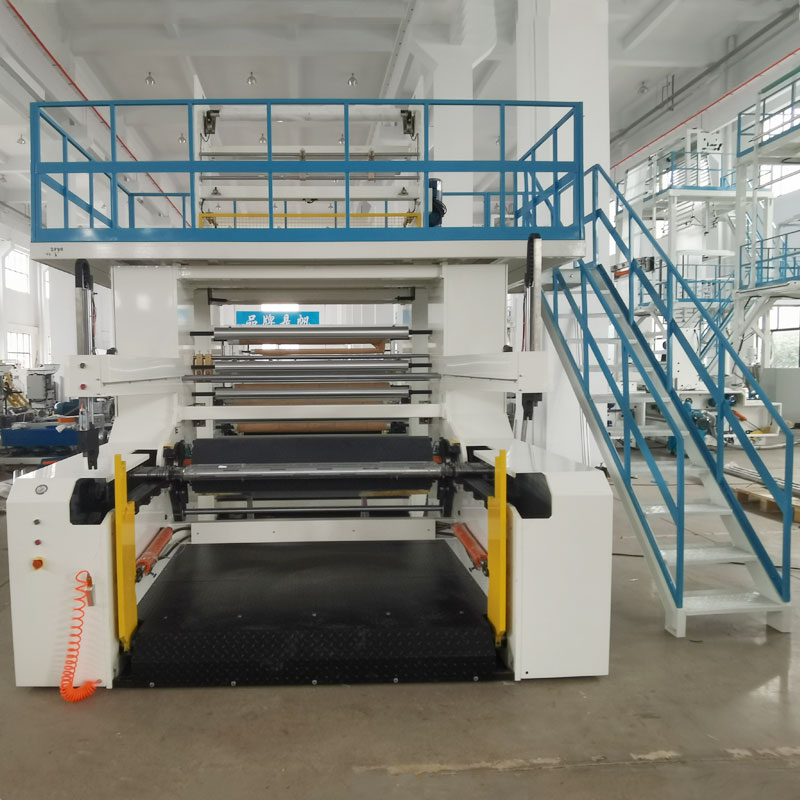

In modern industrial manufacturing, the use of automated equipment is becoming more and more widespread, especially in the fields of textiles, papermaking, plastic processing, etc., where the winding machine has become an indispensable part of the production process. The winding machine is mainly a device that winds flexible materials such as yarn, wire or plastic film into a specified size. Through precise design and intelligent control system, it can efficiently complete the winding and reeling tasks of the material.

1. Basic components of the winding machine

The core function of the winding machine is to wind or reel linear or sheet materials, and the basic components of the equipment include feeding devices, winding devices, etc. The winding machine evenly transports the material to the winding position through the feeding device, and then the guide device accurately positions and controls the material. Finally, the winding device winds the material on the reel or barrel core to produce the coil. The winding machine not only ensures the winding speed of the material, but also ensures precise control during the winding process. Tension control will directly affect the flatness of the finished product. If the tension control is not in place, problems such as looseness and deformation will occur, which will seriously affect the quality of the product.

2. Working principle of the winding machine

(1) Material supply

First, the winding machine accurately controls the material conveying speed and tension through the feeding device to convey the raw materials to the winding area.

(2) Guiding and positioning

When the material enters the winding area, the guiding device will accurately position the material so that the material can enter the winding process smoothly. At the same time, the guiding device will work with the tension control system to prevent the material from being too loose or too tight.

(3) Winding process

After the material passes through the guiding device, the winding device starts to execute winding. The rotating shaft winds the material on the reel or core in an orderly manner according to the set speed and torque.

(4) Tension control

During the winding process, the tension control system is always a very important system. It can detect the tension changes of the material, adjust the winding speed and force in real time, and maintain the tightness and consistency of the coil.

The winding machine is an indispensable and important industrial automation equipment in life, so it is very important to choose a good winding machine!
