Flatbelt conveyor 170×1500
Fast and Flexible PCB Depaneling with all options available

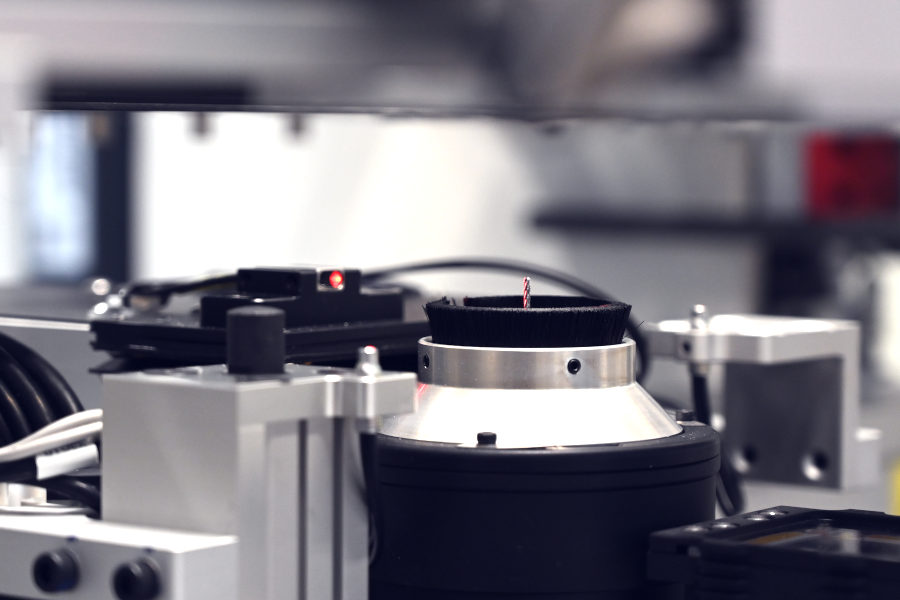

Broken bit detection.
Best flexibility and efficiency
High flexibility
High volume
High quality
Fast and Flexible PCB Depaneling with all options available
Flexibility and high output can now easily be
combined. The machine can be delivered with the
flexible servo gripper, with a dedicated multi-gripper
or with a combination of both. Adding the popular
underboard support function turns the machine into
a true high-volume machine.
Optical routing verification, improved dust
extraction, additional cleaning functions and other
highly appreciated options gives you the best
process performance available on the market.
The output of ready products is easily configured to
your needs due to the unique frame design.
Equipped with extensive software options covering
off-line CAD import, MES connectivity and
traceability Cencorp 1000 BR EVO2 meets the
toughest quality demands in electronics industry
today.
Key technical information
Pick u0026 Place Work Envelope
X-travel: 570 mm
Y-travel: 1505 mm
Z-travel: 200 mm
W-travel: 360 deg
Router Work Envelope
X-travel: 436 mm
Y-travel: 681 mm
Z-travel: 50 mm
Accuracy
Repeatability (X, Y, Z): ±0.02 mm [3 s]
Repeatability (W): ±0.05⁰ [3 s]
Pick u0026 Place Performance
Max. axis speed: 2000 mm/s
Max. acceleration: 20000 mm/s2
Rec. routing speed: 20–50 mm/sec
Software function
Lorem ipsum dolor sit amet
Lorem ipsum dolor sit amet
Optional function
Optional function
Optional function
Optional function
Software function
Optional function
Optional function
Optional function
