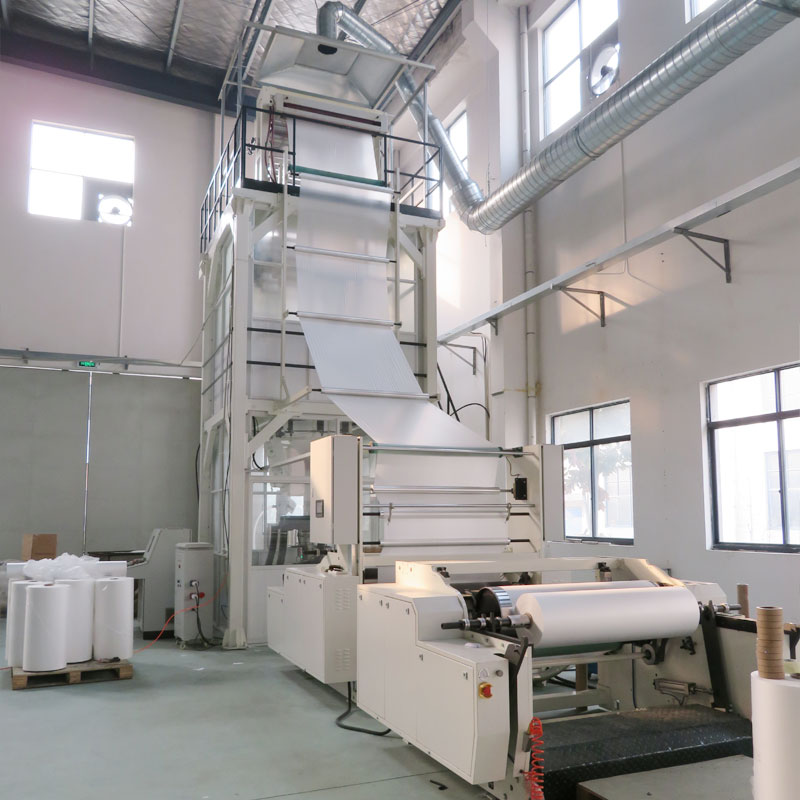

Three Layer HDPE Blown Film Machine
Based in China, Inter is a well-known producer and provider of Three Layer HDPE Blown Film Machines. Known for our dedication to both price and quality, our equipment has received praise from many happy clients. With a strong market presence throughout Asia, we are well-positioned to be your go-to partner in China, providing premium Three Layer HDPE Blown Film Machine and first-rate customer support.
Send Inquiry
Product Description
Inter Three Layer HDPE Blown Film Machine is equipped with advanced automation features, allowing you full control of the entire equipment through the HMI interface. The equipment includes:
-Fully automatic center-gap-surface winder Internal with dual-side technology
-Non-contact type IBC system
-Automatic thickness control
-Automatic Gravimetric Dosing System
Certainly, you have the flexibility for customization, and we provide reliable recommendations tailored to your needs.
Parameter (Specification)
Attention: What is shown here is a standard model of the machine.
| Roller Width (mm) | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 |
| Screw Diameter (mm) |
65*2 75*1 |
65*2 75*1 |
65*2 80*1 |
75*2 85*1 |
75*2 85*1 |
75*2 85*1 |
75*2 90*1 |
80*2 90*1 |
| Main Motor (HP) |
60*2 75*1 |
60*2 75*1 |
60*2 100*1 |
100*2 120*1 |
100*2 120*1 |
100*2 120*1 |
100*2 150*1 |
100*2 150*1 |
| Film Width (mm) | 750-1500 | 850-1700 | 950-1900 | 1050-2100 | 1150-2300 | 1300-2500 | 1400-2700 | 1550-2900 |
| Film Thickness (mm) | 0.02-0.18, depending on the material & film size | |||||||
| Die Diameter (mm) | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 |
| Film Output (Kg/hr.) | 300 | 330 | 380 | 420 | 480 | 550 | 600 | 650 |
Please note that the models shown here are not exhaustive. If you require other models, please feel free to contact us.
Feature And Application
The Inter three-layer HDPE blown film machine produces high-quality films for our vast clientele. Our equipment offers broad adaptability to raw materials, high production capacity, low energy consumption, and enhances your competitiveness.
-It supports a wide range of raw materials such as HDPE, LDPE, LLDPE, MPE, POE, EVA, TPU. (Please contact us for further details.)
-Application for protective films, shrink films, composite films, cold stretch sleeve films and more.
-For Food packaging，Medical packaging，Industrial packaging，Agriculture，Consumer -goods packaging，Construction，Textile manufacturing.
-Max. film width of up to 3.6 m (7.2 m for single-layer-opened films)
Details
